Our acoustic absorbing sheets create the pleasant environments by reducing all sorts of generated noises, and have the vibration and noise control effects on suppressing noises and vibrations. These products also boast their excellent sound isolation effects due to no electromagnetic interference.
|
|
 |
 |
Our acoustic absorbing sheet, SODAM-SHEET boasts its excellent - sound blocking effect due to the special complex materials applied in flexible high - density. This sheet is made from the inflammables materials to provide good flame resistance, and the materials consisting of bio - elements prevent mold from being generated, as well as a radio derivative contained here creates the pleasant environment by reducing all sorts of generated noises. In addition, this sheet has the vibration and noise control effect on suppressing noises and vibrations, and is excellent in blocking sounds due to no electromagnetic interference.
|
|
 |
|
| Model |
|
Thickness (mm) |
|
Width (mm) |
|
Length (m) |
|
|
|
| SODAM - 1T |
|
1 |
|
900 ~ 1300 |
|
20 |
|
|
|
| SODAM - 1.5T |
|
1.5 |
|
900 ~ 1300 |
|
20 |
|
|
|
 |
 |
 |
Excellent Sound Blocking Effect |
|
: Excellent sound blocking effect on reducing generated noises due to the large-sized materials in high density |
|
No Coincidence |
|
: The "coincidence "is a phenomenon that the sound which has been generated by the air vibration is transmitted, and this phenomenon does not occur to our acoustic absorbing sheets. |
|
No Electromagnetic Interference |
|
: acoustic absorbing sheet contains a radio derivative, so it is possible to use the indoor antennas for radios and TV sets without any interference. |
|
Excellent Safety |
|
: Our acoustic absorbent made from inflammable materials provide excellent flame resistance, and prevent mold for gathering even under humid conditions. |
|
Vibration Control |
|
: Our acoustic absorbent suppresses the impact sound made on a structure by blocking vibrations from being transmitted |
|
Easy Construction |
|
: The flexible soft material used in our acoustic absorbing sheet allows you to easily cut into the shapes you want, as well as to easily deal with it for your
Construction services using a stapler or an adhesive when attaching to walls.
|
|
 |
|
 |
|
|
Housing Space |
|
: Soundproof materials for floors in apartments, and residential buildings |
|
Industrial and Commercial Structure |
|
: Plant, Multipurpose Building, Studio Apartment, Hotel, Broadcasting Station, Sports Center |
|
General Structure |
|
: Structure required to prevent sounds and vibrations between floors and boundaries |
|
Industrial and Home Appliance |
|
: Car, Ship, Electronic Appliances(Refrigerator, Air Conditioner, , Washing Machine) |
|
|
|
 |
|
|

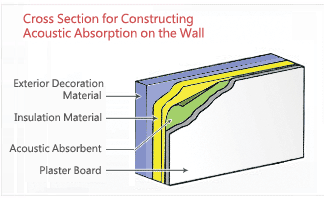

Sound Blocking and Insulation on Walls |
|
: Erect the acoustic absorbent first on the lower area of the floor when constructing
: Insert the acoustic absorbent between them when constructing walls, and make sure to be sandwich - typed insulation
: Use adhesives and nails when installing light wall materials, or constructing insulation walls
: Make sure to remove the gap on connections to maximize a sound blocking and insulation effect
: Conduct CM - overlapped pasting for good effectiveness
|
 |
|

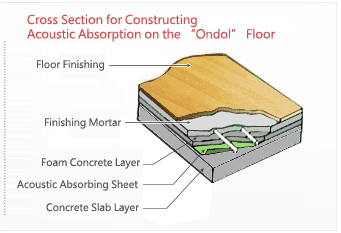

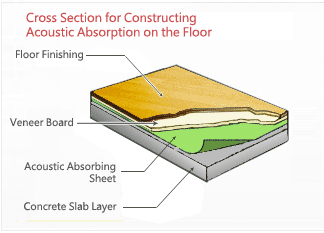

Concrete Floor |
|
: Unfold the roll on the concrete surface
: Adhere and fix the connections using tapes, or cilantros
: Pour the cement at the thickness of 30 - 40 MM when constructing
: Make up for the cemented area using wire mashes
|
|
|
|
 |
  |
  |
 |
 |
   |
 |
  |
|
 |
|
|
|
|
|
|
|
|
|
